multipurpose plug & play radiation detection system

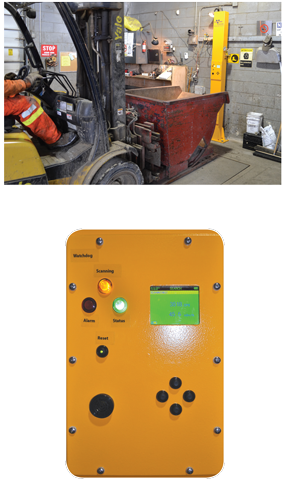

The RC17-WATCHDOG is designed to provide radioactive source detection, in real-time, for small-medium weigh scale, pedestrian portal and area monitoring applications.

The RC17-WATCHDOG system arrives ready to use. You only have to bolt the system to the floor and plug it in. The RC17-WATCHDOG incorporates a PVT detector and provides a wide angle-of-view to ensure the greatest area is being scanned at all times. Simple operation, with remote service capability. Easy to adjust alarm thresholds.

Technical Data

Detection Method Polyvinyl Toluene  (PVT)
Detector Enclosure Rating NEMA
Detector Weight 90lbs (40.8kg)
Energy Range 45KeV to 2.0 MeV
External Operating Temperature -4°F to 131°F (-20°C to 55°C)
Data Output Pass / Fail
Remote Connectivity Yes
Languages Supported English
Power Supply Input 87-240 VAC
Options RadView Software
