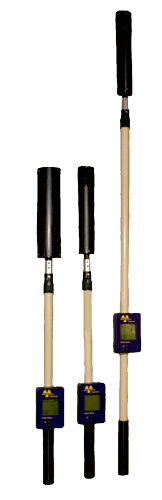

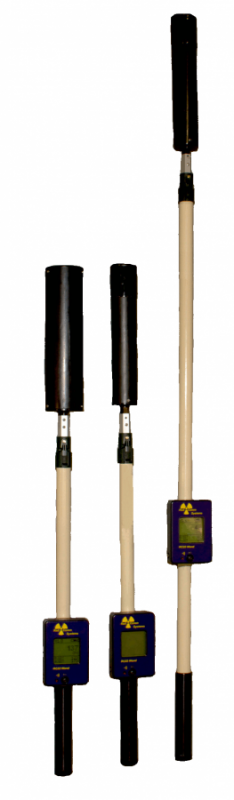

Telescopic radiation detector

The RC22 and RC23 are designed to allow fast and easy inspection of areas, containers or vehicles that may contain radioactive material.

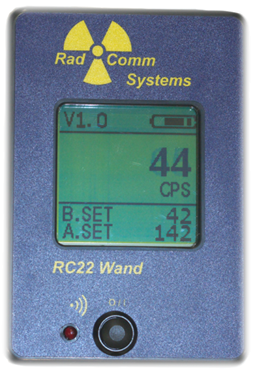

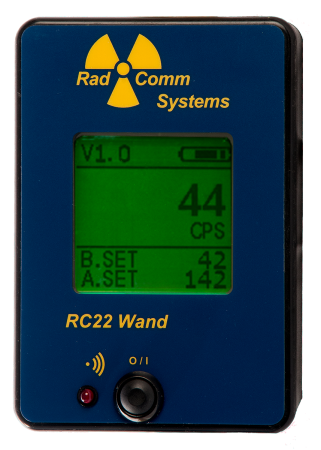

Fully automatic, the unit will set an alarm threshold after performing a background check. When radiation is detected, the display will immediately show the increasing radiation levels. An audio alarm will also be activated to help locate the exact source of the radiation. The tone varies based upon the proximity and intensity of the radioactive source.

Feature RC22 Short RC22 Long RC23
Head Size 2″
(5.1cm)
2″
(5.1cm)
3″
(7.6cm)
Extendable Length 49″- 68″
(1.2m – 1.7m)
68″ – 99″
(1.7m – 2.5m)
 49″- 68″
(1.2m – 1.7m)
Weight 5.2 lbs (2.3kg) 5.4 lbs (2.7kg) 6.0 lbs (2.4kg)
Detector Size 193cc 193cc 442cc

Technical Data

Display 2.17" x 2.17" (55mm x 55mm)
Units of Measurement CPS, Sv/h, R/h
Energy Range 30 KeV - 2.0 MeV
Temperature Range 14 F to 122 F (-10 C to 50 C)
Battery 2 x NiMH 10,000 mA/h rechargeable
