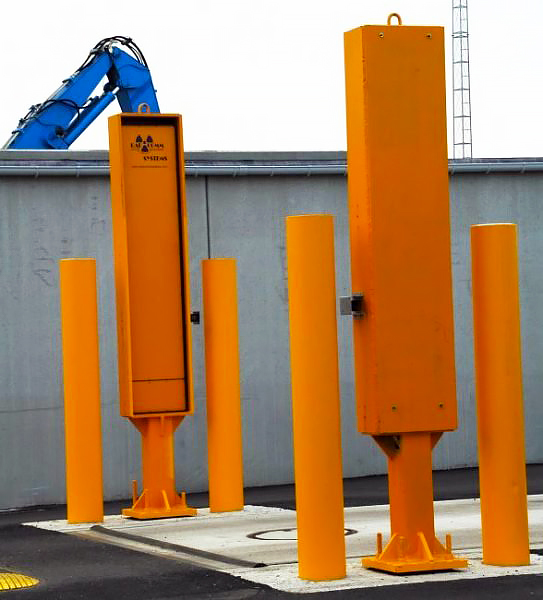

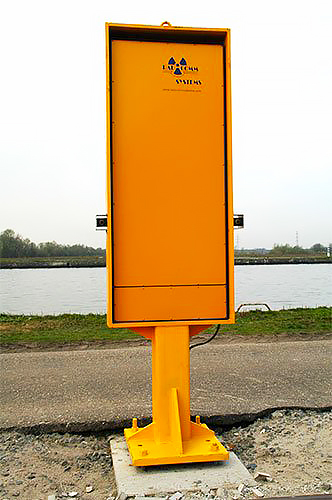

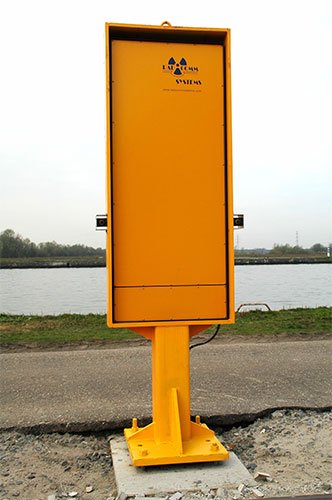

Vehicle monitoring radiation detection systems

The RC2000 series of vehicle radiation detection systems have been designed to detect low Gamma Ray emissions in moderate density materials, such as compressed waste and processed scrap metal.

System operation is completely automated, providing specific alarm thresholds in real time during each scanning period. The RC2000 utilizes a user friendly graphical interface allowing the operator to easily move through the wide range of user options. Detailed alarm records are stored on the internal hard drive and can easily be retrieved. Remote access capability is available to provide technical support and electronic hardware adjustments.

Easy to install, operate and maintain. The RC2000 utilizes a user friendly graphical interface allowing the operator to easily move through the wide range of user options. Detailed alarm records are stored on the internal hard drive and can easily be retrieved. Remote access capability is available to provide technical support and electronic hardware adjustments.

Model RC2069R-2  RC2110R-2 RC2138R-2
System Size (in3) 4,216 5,376 8,432
System Size L 69 88 138
PER/Panel Size (in3) 2,108 2,632 4,216
PER/Panel Size (L) 34.5 44 69
# of PMTs/panel 1 2 2
Detection Sensitivity * Unshielded (Shielded Source)  2.3 μCi(82mCi)  2.0 μCi(71mCi)  1.6 μCi(58mCi)

*Cs-137 point source at 1 meter from the face of the detector. The radiation exposure level is comparable to a 75mm x 150mm Cs-137 lead sealed source buried in 40.0 lbs/ft3 (0.6 g/cm3) of scrap metal.

Technical Data

RC2000 Series
Detection Method Polyvinyl Toluene  (PVT)
Detector Enclosure Rating NEMA 4
Energy Range 20KeV to 3.0 MeV
External Operating Temperature -4°F to 131°F (-20°C to to 50°C)
Data Output Fields Date, time, occupancy duration, unit  ID, alarm condition, background count, gamma count
Data Output XML, ASCII
Languages Supported English, Czech, German, Spanish, French, Italian, Dutch, Polish, Portuguese, Finnish
Agency Compliance ANSI N42.35 / IEC 62244, ANSI N42.42 / IEC 62755
Accessories Camera
External Alarm
Supervisory Software
Neutron Detection No
