Vehicle monitoring radiation detection systems

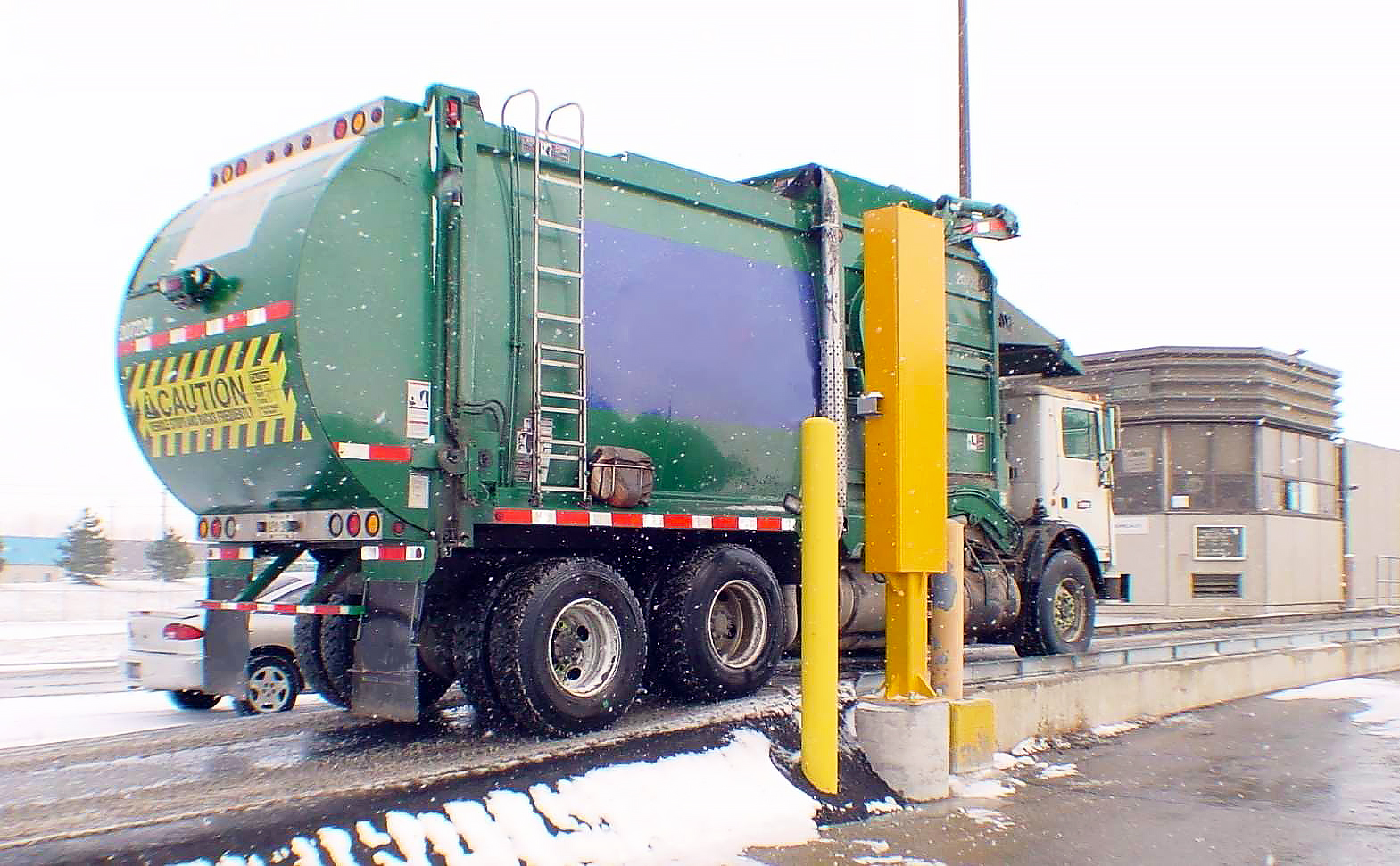

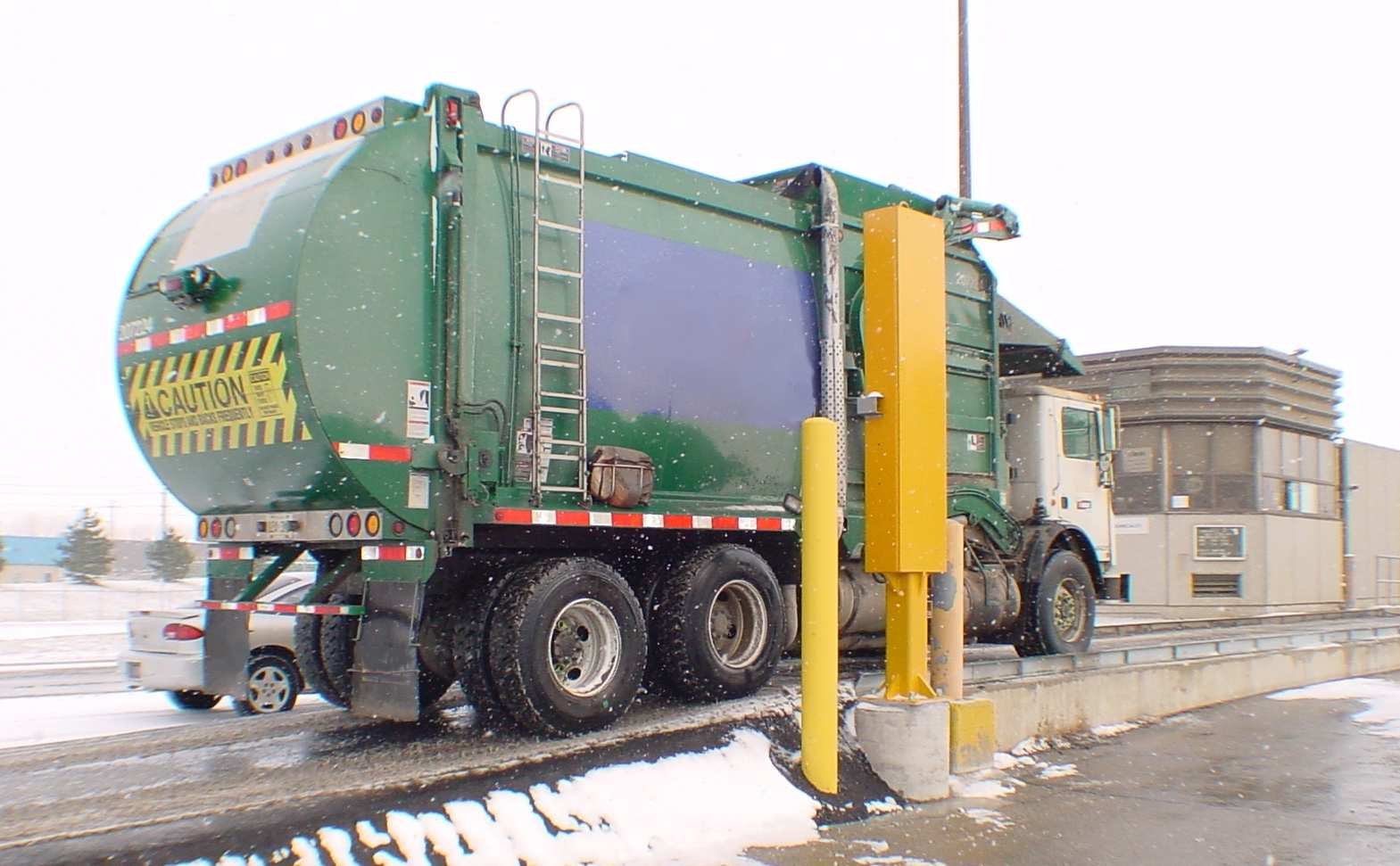

The RC2W34 series of vehicle radiation detection systems have been designed to detect radioactive material contained in a moving vehicle, loaded with waste and scrap metal material.
The RC2W34 series utilize high quality PVT scintillators and highly sensitive PMT’s coupled with high grade electronics and proven signal processing alarm algorithms. The system can re-learn background levels providing accurate scanning, while maintaining a low false alarm rate. If radiation signatures are present in a load of waste material, the system will immediately alarm, alerting the user, if a radioactive source has been detected.
The RC2W34 is available in a variety of sizes and configurations and can be upgraded to RC2000 and RC4000 series software. The most common models are listed below.
The innovative design of the RC2W34 is the result of customers’ demands for best in class scanning coverage of vehicles with a low cost of ownership.
| Model | RC2W34R-2 | RC2034WR-2 |
| System Size (in3) | 2,108 | 2,108 |
| System Size (L) | 34.5 | 34.5 |
| PER/Panel Size (in3) | 1,054 | 1,054 |
| PER/Panel Size (L) | 17.25 | 17.25 |
| # of PMTs/panel | 1 | 1 |
| Detection Sensitivity * Unshielded (Shielded Source) |
3.3 μCi (116mCi) | 2.8 μCi (90mCi) |
*Cs-137 point source at 1 meter from the face of the detector. The radiation exposure level is comparable to a 75mm x 150mm Cs-137 lead sealed source buried in 37.4 lbs/ft3 (0.7 g/cm3) of scrap metal.
Data SheetRequest for quote
Technical Data
| RC2W34R-2 | RC2034WR-2 | |
| Detection Method | Polyvinyl Toluene (PVT) | Polyvinyl Toluene (PVT) |
| Detector Enclosure Rating | NEMA 4 | NEMA 4 |
| Energy Range | 50KeV to 3.0 MeV | 20KeV to 3.0 MeV |
| External Operating Temperature | -4°F to 122°F (-20°C to 50°C) | -4°F to 122°F (-20°C to 50°C) |
| Data Output | Pass / Fail | Date, time, alarm report, # of scans, alarm condition |
| Remote Connectivity | - | Remote diagnostics, optional Supervisory software |
| Languages Supported | English, Spanish, French | English, Spanish, French |
| Accessories | - | Camera External Alarm Supervisory Software |
| Available Upgrades | RC2034WR-2 |
