spectroscopic personal radiation detector (optional neutron detection)

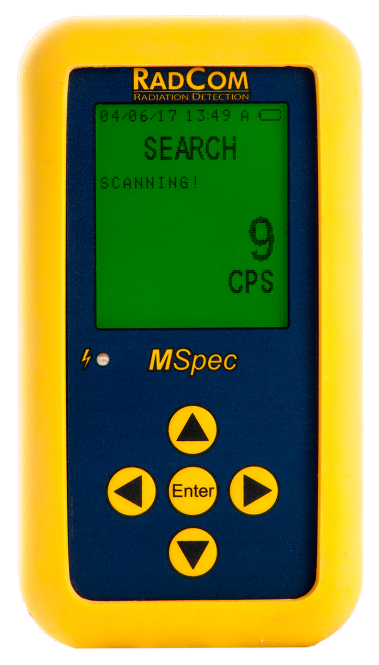

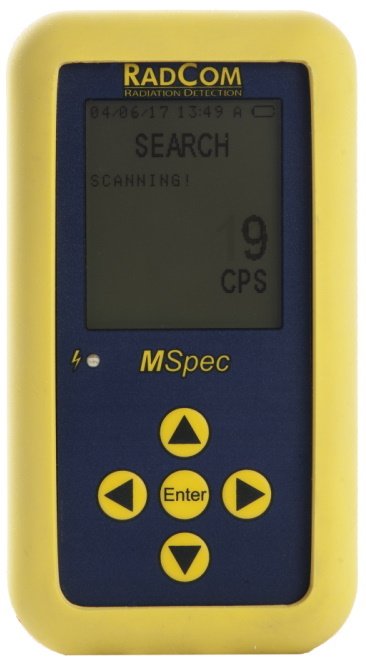

The MSPEC is a fast responding palm size Spectroscopic Personal Radiation Detector (SPRD) that will instantly measure any material for the presence of radioactivity.

The MSPEC Gamma-Ray Spectrometer utilizes a Sodium doped Cesium Iodide crystal and state of the art electronics for the most accurate results.
Operation of the MSPEC is completely automatic, once the easy-to-set operational parameters have been decided. The system allows for displaying units of measure as Counts per Second (CPS), Dose-Rate (nSv/h), Exposure Rate (µR/h), or Accumulated Dose (nSv).

The MSPEC meets ANSI 42.48:2008 American National Standard Performance Requirements for Spectroscopic Personal Radiation Detectors (SPRDs) for Homeland Security.

Technical Data

Detection Type CsI (Na)
Gamma Spectrum 1024 channels
Detector Dimensions 4.75" x 2.5" x 1.22" (12.1cm x 6.4 cm x 3.1 cm)
Detector Weight 0.4 lbs (0.2 kg)
Energy Range 30 KeV – 3.0 MeV
External Operating Temperature 14°F to 113°F (-10°C to 45°C)
Battery Life Up to 10 hours
Battery Recharge Time 4.5 hours USB
Languages Supported English, Chinese, Japanese
Agency Compliance ANSI 42.48
Accessories Neutron detection
