Spectroscopic Radiation Detection & Isotope Identification

The RC7000 series of radiation detectors represent the next level in radiation detection, by utilizing gamma spectroscopy and isotope identification technologies.

The RC7000 uses large volume, high quality, Sodium Iodide crystal scintillators. This technology is specifically designed to enhance a radiation detection systems ability to recognize specific gamma energies which can adversely affect alarm thresholds. The RC7000 uses a series of advanced isotopic identification algorithms to provide best in class detection and identification.

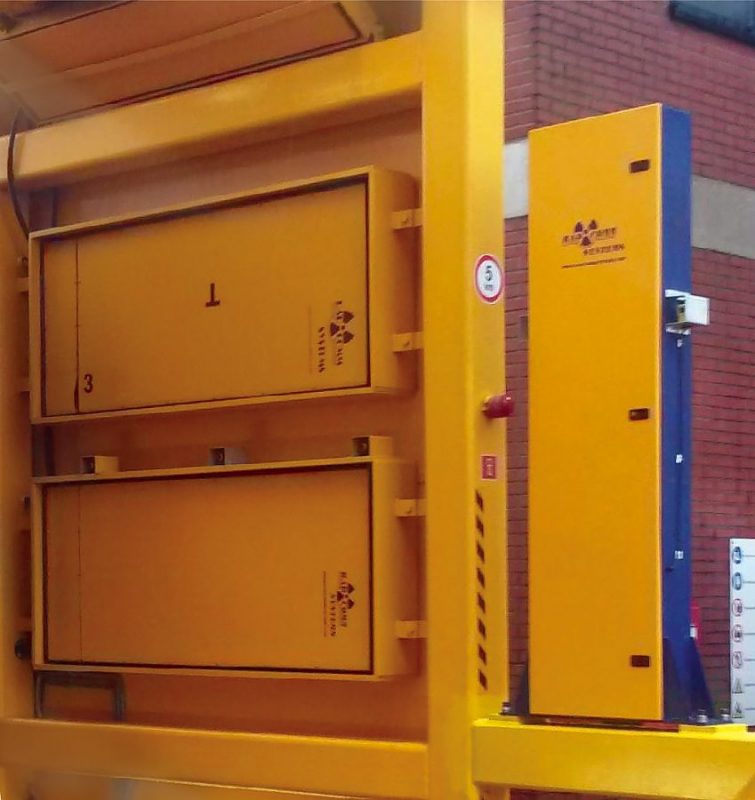

  • RC7000 – Sodium Iodide crystal detector
  • RC7100 – Mixed detector, having both PVT and 1-2 crystal scintillators
  • Systems can include any number, or combination, of PVT, Crystal & mixed detectors
  • Existing PVT based systems can be upgraded to include RC7000 and RC7100 detectors
  • All systems have optional neutron capability

Technical Data

RC7000 Series
Detection Method NaI(TI) Crystal
Detector Enclosure Rating NEMA 4
Energy Range 20KeV to 3.0 MeV
External Operating Temperature -4°F to 131°F (-20°C to to 55°C)
Data Output Fields Date, time, occupancy duration, unit  ID, alarm condition, background count, gamma count, nuclide ID
Data Output XML, ASCII
Languages Supported English, Czech, German, Spanish, French, Italian, Dutch, Polish, Portuguese, Finnish
Agency Compliance ANSI N42.38 / IEC 62484, ANSI N42.42 / IEC 62755
Accessories Camera
External Alarm
Supervisory Software
Neutron Detection Optional
