Portable Gamma-Ray Spectrometer (optional Neutron Detector)

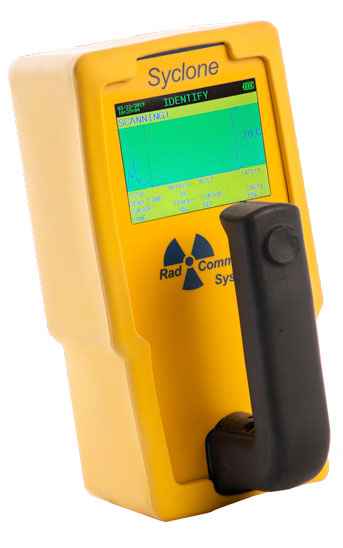

The SYCLONE is a highly sensitive portable Gamma-Ray spectrometer capable of identifying single or multiple isotopes simultaneously. The SYCLONE also provides the user with various functions such as Search & Find, optional Neutron Detection, Nuclide ID, Dose Rates and accumulated Dose Rate.

The mechanical assembly of the SYCLONE is robust and designed for field applications where harsh environments are commonplace. The SYCLONE Gamma-Ray Spectrometer utilizes the highest quality Thallium doped Sodium Iodide crystal.

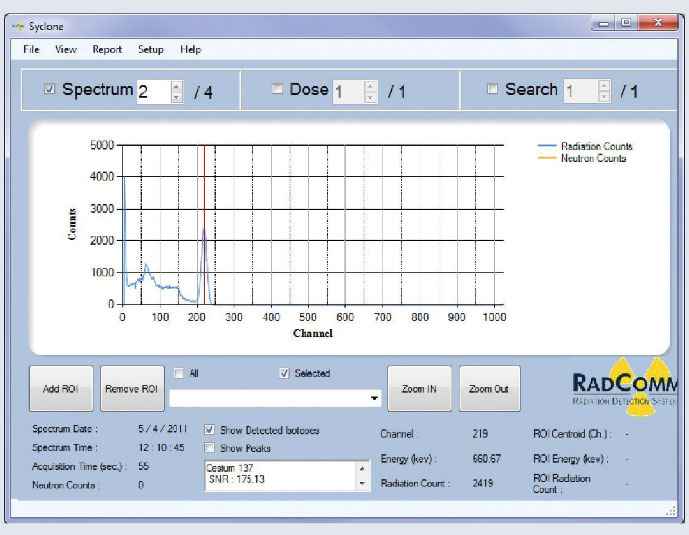

The SYCLONE operating system utilizes sensible easy to read and follow menus. The multi-position joystick and large colour LCD display provide easy navigation. Detailed spectral information is displayed so that even users without extensive training will understand scan results. Various on-screen messages assist the user when immediate attention is required for issues such as high radiation levels, alarm settings and warning messages.

Options include:

  • Neutron Detection
  • GPS
  • Bluetooth
  • Geophysics application
  • Automatic energy stabilization (no check source required)
  • Syclone Conversion Kit for Exploranium GR-135 Identifier. Upgrades GR-135 to a Syclone Handheld Gamma-Ray Spectrometer.

Technical Data

Detection TypeNal TI + Geiger-Mueller
Gamma Spectrum1024 channels
Detector Dimensions5.9” x 8.25” x 4.0”  (15cm x 21cm x 10cm)
Detector Weight3.6 lbs (1.6kg)
Energy Range30 KeV – 2.0 MeV
External Operating Temperature-4°F  to 140°F (-20°C to 60°C)
Battery LifeUp to 8 hours
Battery Recharge Time2.5 hours AC / 6 hours USB
Languages SupportedEnglish, Chinese, Japanese, Spanish, German, French
Agency ComplianceANSI 42.34 / ANSI 42.42
AccessoriesNeutron detection
